Design Pattern (11) Adapter Pattern Complete Tutorial: Solving Interface Incompatibility Issues

You can download the Design Pattern series code from this design_pattern repo.

After completing the study of Creational Patterns, we now move into the exploration of Structural Patterns. Structural Patterns focus on how to compose classes and objects to work together and form larger structures.

Requirements

We have received a practical system integration requirement:

The company’s existing stock data system has long used XML format to store and transmit data. However, a recently introduced third-party stock analysis system only supports JSON format.

This format mismatch situation is very common in enterprise environments. To integrate the two systems, we need to design a solution that allows existing XML data to be correctly received and processed by the third-party analysis system.

Object-Oriented Analysis (OOA)

After understanding the requirements, let’s first conduct object-oriented analysis to identify the core components in the system and their relationships:

Identifying Forces

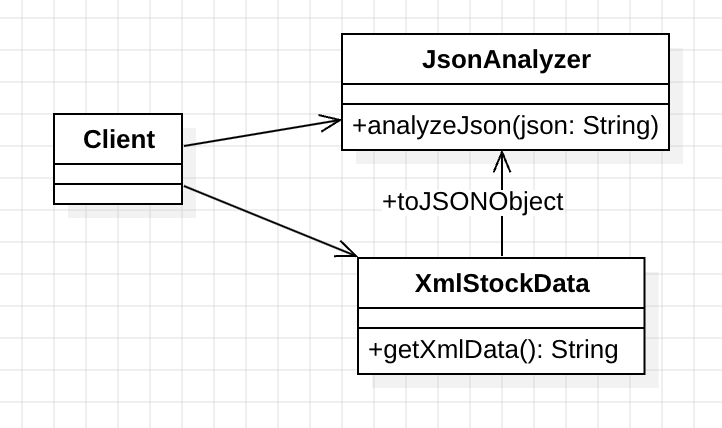

In a direct implementation without design patterns, although functionality can work normally, it faces several important issues:

1. Responsibility Distribution Problem

The Client takes on the responsibility of data conversion, which violates the Single Responsibility Principle (SRP)
When conversion logic becomes complex, the Client’s code will become bloated and difficult to maintain

2. Code Duplication Problem

If other systems also need the same XML to JSON conversion logic, they must implement it repeatedly
This duplication not only wastes development time but also increases maintenance costs

3. High Coupling Problem

The Client must have deep understanding of the specific implementation details of XmlStockData and JsonAnalyzer
When data source formats or target system interfaces change, the Client must undergo significant modifications

4. Insufficient Extensibility

If support for more data formats (such as CSV, YAML, etc.) is needed in the future, each new format requires adding conversion logic to the Client
This approach makes the system difficult to extend and continuously increases maintenance costs

Applying Adapter Pattern (Solution) to Achieve New Context (Resulting Context)

After completing object-oriented analysis and identifying design challenges, we can apply the Adapter Pattern to solve these problems.

Adapter Pattern Core Concepts

The Adapter Pattern works like a power adapter in real life. When your laptop charger has a three-prong plug but the wall outlet only has two holes, you need an adapter to solve this mismatch problem.

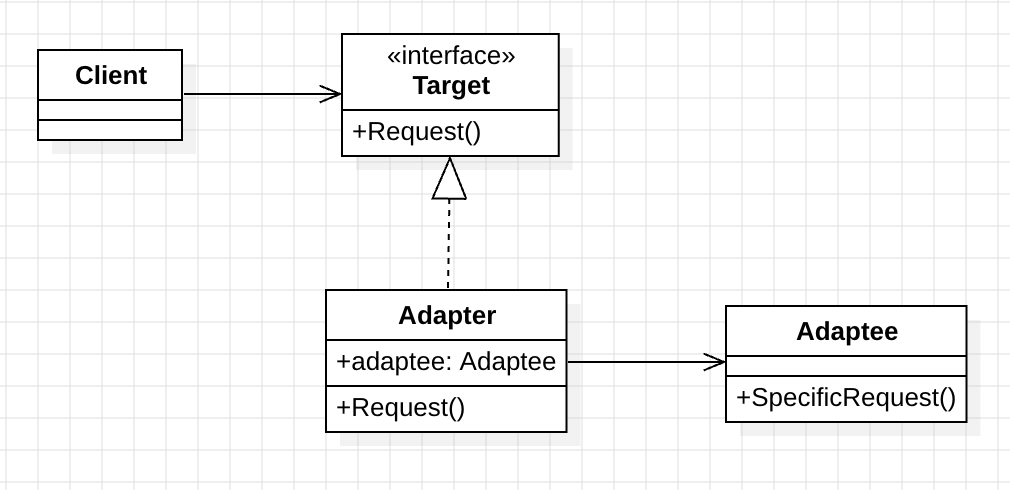

Let’s first look at the standard UML structure of the Adapter Pattern:

Three Core Roles of Adapter Pattern:

Target (Target Interface)

Defines the interface that the client expects to use
In our example, this is the analyzeJsonData method of JsonAnalyzer
It represents the data format and operation method expected by the third-party analysis system

Adaptee (Adaptee)

Represents the existing class that needs to be adapted
In our example, this is the XmlStockData that provides XML format data
It has its own interface but is incompatible with the target system

Adapter (Adapter)

Implements the Target interface while internally holding a reference to the Adaptee
Responsible for converting Adaptee’s data to the format expected by the Target
In our example, StockDataAdapter is responsible for converting XML to JSON

Applying to Our Stock System

Now let’s apply the Adapter Pattern to the stock data system:

Object-Oriented Programming (OOP)

Next, let’s implement this design using Kotlin. Let’s build each role step by step:

Target Interface - JsonAnalyzer

First, define the target interface, which is the interface expected by the third-party analysis system:

interface JsonAnalyzer {
    fun analyzeJsonData(json: String)
}

Adaptee - XmlStockData

This is the existing XML data source that provides stock data in XML format:

class XmlStockData {
    fun getXmlData(): String {
        return """
            <stocks>
                <stock>
                    <symbol>TSLA</symbol>
                    <price>675.50</price>
                </stock>
                <stock>
                    <symbol>AMZN</symbol>
                    <price>3201.65</price>
                </stock>
            </stocks>
        """
    }
}

Adapter - StockDataAdapter

This is our adapter, which implements the JsonAnalyzer interface and is responsible for converting XML data to JSON:

class StockDataAdapter(private val xmlStockData: XmlStockData) : JsonAnalyzer {
    override fun analyzeJsonData(json: String) {
        println("Analyzing JSON data: $json")
    }

    fun convertAndAnalyze() {
        val xml = xmlStockData.getXmlData()
        val json = XML.toJSONObject(xml).toString(4)
        analyzeJsonData(json)
    }
}

Client Usage

The client code becomes very concise, only needing to operate through the adapter:

fun main() {
    val xmlStockData = XmlStockData()
    val adapter = StockDataAdapter(xmlStockData)

    adapter.convertAndAnalyze()
}

Execution Results and Analysis

When we run the above code, the adapter will:

Get XML format stock data from XmlStockData
Convert XML to JSON format
Call the analysis method to process JSON data

Conclusion

By applying the Adapter Pattern, we successfully solved the system integration problem:

Benefits Achieved:

Clear Responsibilities: Data conversion logic is encapsulated in a dedicated adapter
Reduced Coupling: Client no longer needs to understand XML to JSON conversion details
Improved Reusability: StockDataAdapter can be reused in other places that need the same conversion
Easy to Extend: If support for other formats is needed in the future, just create new adapters

Applicable Scenarios:

Adapter Pattern is particularly suitable for:

Integrating third-party libraries or legacy systems
Data format conversion
Integration of classes with incompatible interfaces

This pattern provides us with an elegant way to handle common interface mismatch problems in system integration, making it one of the most practical patterns among structural patterns.
