Design Patterns (2) SOLID Design Principles Complete Guide: Five Principles for Improving Code Quality

You can download the Design Pattern series source code from this design_pattern repo.

Design Principle

Design Principles are important guidelines in software development, specifically used to help us improve object-oriented design.

These principles provide clear direction, enabling us to design more robust, maintainable, and easily extensible software systems. Following these principles not only improves code quality but also reduces future maintenance costs, making development teams more efficient in collaboration.

SOLID Five Fundamental Principles of Object-Oriented Programming

Single Responsibility Principle (SRP)

Core Concept: Each object should have only one single function and only one reason to change this object.

This principle emphasizes the importance of separation of responsibilities. When a class takes on too many responsibilities, any change in one responsibility may affect other functions, increasing maintenance complexity and the risk of errors.

Practical Application Example: Let’s use a common login page functionality as an example. Beginners often put all related functions into the same class:

Swift
Kotlin

class LoginViewController {
    func loginToServer(account: String, password: String, callback: Result<String, Error>) {
//        Alamofire... { callback() }
//        Volley... { callback() }
    }

    func saveToDB(account: String, password: String) {
        // sql.save()...
    }

    func deleteFromDB(account: String) {
        // sql.delete()
    }
}

class LoginActivity {
    fun loginToServer(account: String, password: String, callback:  model.Result<String, Error>) {
//        Alamofire... { callback() }
//        Volley... { callback() }
    }

    fun saveToDB(account: String, password: String) {
        // sql.save()...
    }

    fun deleteFromDB(account: String) {
        // sql.delete()
    }
}

Problem Analysis: The above code violates the SRP principle because LoginViewController takes on three different responsibilities:

Handling user interface logic
Managing network API requests
Handling database operations

Solution: Following the Single Responsibility Principle, we should separate different responsibilities into their respective classes:

Swift
Kotlin

class ServerApiRequestService {
    func login(account: String, password: String, callback: Result<String, Error>) {
//        Alamofire... { callback() }
//        Volley... { callback() }
    }
}

class DBService {
    func save(account: String, password: String) {
//        sql.save()
    }

    func delete(account: String) {
//        sql.delete()
    }
}

class LoginViewControllerSRP {
    var apiRequestService: ServerApiRequestService? = nil
    var dbService: DBService? = nil

    func loginToServer(account: String, password: String, callback: Result<String, Error>) {
        apiRequestService?.login(account: account, password: password, callback: callback)
    }

    func saveToDB(account: String, password: String) {
        dbService?.save(account: account, password: password)
    }

    func deleteFromDB(account: String) {
        dbService?.delete(account: account)
    }
}

class ServerApiRequestService {
    fun login(account: String, password: String, callback: model.Result<String, Error>) {
//        Alamofire... { callback() }
//        Volley... { callback() }
    }
}

class DBService {
    fun save(account: String, password: String) {
//        sql.save()
    }

    fun delete(account: String) {
//        sql.delete()
    }
}

class LoginActivitySRP {
    var apiRequestService: ServerApiRequestService? = null
    var dbService: DBService? = null

    fun loginToServer(account: String, password: String, callback: model.Result<String, Error>) {
        apiRequestService?.login(account, password, callback)
    }

    fun saveToDB(account: String, password: String) {
        dbService?.save(account, password)
    }

    fun deleteFromDB(account: String) {
        dbService?.delete(account)
    }
}

Improvement Effects: Now each class has a clear and single responsibility:

ServerApiRequestService: Focused on network request handling
DBService: Focused on database operations
LoginViewControllerSRP: Focused on coordinating various services and handling UI logic

Important Reminder: Some articles suggest splitting save and delete functions into different classes (like DeleteDBService, SaveDBService), considering these as different responsibilities.

However, over-splitting may lead to overly complex design (Over Design), actually reducing code maintainability. Responsibility separation should be appropriate, not excessive, requiring a balance between functional cohesion and responsibility separation.

Open Closed Principle (OCP)

Core Concept: Software entities should be open for extension but closed for modification.

The essence of this principle is that when we need to add new functionality, we should achieve it by extending existing code rather than modifying existing code. This avoids impact on stable running code and reduces the risk of introducing new bugs.

Practical Application Example: During development, we often need to validate various user input data formats. Let’s design a generic validator:

Swift
Kotlin

enum ValidatorType {
    case username
    case password
}

enum ValidationError: Error, Equatable {
    case isEmpty(errorMessage: String)
    case containsSpecialChar(errorMessage: String)

    static func == (lhs: Self, rhs: Self) -> Bool {
        switch (lhs, rhs) {
        case (.isEmpty(_), .isEmpty(_)):
            return true
        case (.containsSpecialChar(_), .containsSpecialChar(_)):
            return true
        default:
            return false
        }
    }
}

class Validator {
    func validated(_ value: String, validatorType: ValidatorType) throws -> String {
        switch validatorType {
        case .username:
            guard !value.isEmpty else {
                throw ValidationError.isEmpty(errorMessage: "isEmpty")
            }
            guard !value.isContainsSpecialChars() else {
                throw ValidationError.containsSpecialChar(errorMessage: "containsSpecialChar")
            }
        case .password:
            guard !value.isEmpty else {
                throw ValidationError.isEmpty(errorMessage: "isEmpty")
            }
        }
        return value
    }
}

enum class ValidatorType {
    Username,
    Password;
}

sealed class ValidationException: Exception() {
    class IsEmpty(val errorMessage: String): ValidationException()
    class ContainsSpecialChar(val errorMessage: String): ValidationException()

    override fun equals(other: Any?): Boolean {
        return when {
            this is IsEmpty && other is IsEmpty -> true
            this is ContainsSpecialChar && other is ContainsSpecialChar -> true
            else -> false
        }
    }
}

class Validator {
    @Throws(ValidationException::class)
    fun validated(value: String, validatorType: ValidatorType): String {
        when (validatorType) {
            ValidatorType.Username -> when {
                value.isEmpty() -> throw ValidationException.IsEmpty("isEmpty")
                value.isContainsSpecialChars() -> throw ValidationException.ContainsSpecialChar("containsSpecialChar")
            }
            ValidatorType.Password -> when {
                value.isEmpty() -> throw ValidationException.IsEmpty("isEmpty")
            }
        }
        return value
    }
}

Problem Analysis: The above design has a major problem: when clients request adding new validation types (like Email, Phone Number, Device Mac, etc.), we must modify the code of the Validator class.

This violates the Open-Closed Principle because:

Every new feature requires modifying existing code
It may affect already stable validation logic
It increases the risk of introducing bugs

Solution: We can solve this problem through abstraction and polymorphism, making the system open for extension and closed for modification:

Swift
Kotlin

protocol ValidatorConvertible {
    func validated(_ value: String) throws -> String
}

class UserNameValidator: ValidatorConvertible {

    func validated(_ value: String) throws -> String {
        guard !value.isEmpty else {
            throw ValidationError.isEmpty(errorMessage: "isEmpty")
        }
        guard !value.isContainsSpecialChars() else {
            throw ValidationError.containsSpecialChar(errorMessage: "containsSpecialChar")
        }
        return value
    }
}

class PasswordValidator: ValidatorConvertible {

    func validated(_ value: String) throws -> String {
        guard !value.isEmpty else {
            throw ValidationError.isEmpty(errorMessage: "isEmpty")
        }
        return value
    }
}

interface ValidatorConvertible {
    @Throws(ValidationException::class)
    fun validated(value: String): String
}

class UserNameValidator: ValidatorConvertible {

    override fun validated(value: String): String {
        when {
            value.isEmpty() -> throw ValidationException.IsEmpty("isEmpty")
            value.isContainsSpecialChars() -> throw ValidationException.ContainsSpecialChar("containsSpecialChar")
        }
        return value
    }
}

class PasswordValidator: ValidatorConvertible {

    override fun validated(value: String): String {
        when {
            value.isEmpty() -> throw ValidationException.IsEmpty("isEmpty")
        }
        return value
    }
}

Improvement Effects: Now when we need to add Email, Phone Number, Device Mac format checks, we only need to:

Create corresponding validator classes: EmailValidator, PhoneNumberValidator, DeviceMacValidator
Make these classes implement the ValidatorConvertible interface
No need to modify existing code at all

This design truly achieves:

Open for extension: Easy to add new validators
Closed for modification: No impact on existing stable code

Liskov Substitution Principle (LSP)

Core Concept: Objects in a program should be replaceable with instances of their subtypes without altering program correctness.

This principle emphasizes the correctness of inheritance relationships. Child classes should not only inherit parent classes syntactically, but more importantly, maintain consistent behavior semantically. Violating LSP will cause polymorphism to fail, producing unexpected results when using child classes.

Practical Application Example: Let’s understand this principle through a classic geometric shape example. Suppose we need to calculate the area of squares and rectangles:

Swift
Kotlin

class Rectangle {
    var height: Int
    var width: Int

    init(height: Int, weight: Int) {
        self.height = height
        self.width = weight
    }

    func getArea() -> String {
        return "\(height * width)"
    }
}

class Square: Rectangle {
    override func getArea() -> String {
        if height != width {
            return "Length and width must be consistent"
        } else {
            return super.getArea()
        }
    }
}

let rectangle = Rectangle(height: 2, weight: 3)
print("\(rectangle.getArea())")
let square = Square(height: 2, weight: 3)
print("\(square.getArea())")

open class Rectangle(protected val height: Int, protected val width: Int) {

    open fun getArea(): String {
        return "${height * width}"
    }
}

class Square(height: Int, width: Int) : Rectangle(height, width) {
    override fun getArea(): String {
        return if (height != width) {
            "Length and width must be consistent"
        } else {
            super.getArea()
        }
    }
}

val rectangle = Rectangle(2, 3)
println("${rectangle.getArea()}")
val square = Square(2, 3)
println("${square.getArea()}")

Problem Analysis: In the above example, we make Square inherit Rectangle, but Square’s getArea() method behavior is inconsistent with Rectangle. When length and width are not equal, Square returns an error message instead of a calculation result, breaking the LSP principle.

Mathematically, although a square is a special case of a rectangle, in programming, this inheritance relationship breaks substitutability. Users expect all Rectangle objects to calculate area normally, but Square may return error messages.

Benefits of Following LSP:

Enhanced code robustness: Greatly ensures compatibility when using different subclasses
Guaranteed polymorphism effectiveness: Wherever parent classes can be used, child classes can also be used normally
Clear functional division: Child classes should add functionality independently of parent class functionality, avoiding problems when porting between different child classes

Interface Segregation Principle (ISP)

Core Concept: Multiple specific client interfaces are better than one general-purpose interface.

This principle suggests we should not force classes to implement interface methods they don’t use. When interfaces are too large, implementing classes may be forced to implement methods that are meaningless to them, increasing coupling and reducing system flexibility.

Practical Application Example: Suppose we need to design a vehicle operation system that allows different types of users to operate cars:

Swift
Kotlin

protocol Car {
    func startEngine()
    func stopEngine()
    func enableDebugMode()
}

class Driver: Car {
    func startEngine() {
        print("start engine")
    }

    func stopEngine() {
        print("stop engine")
    }

    func enableDebugMode() {
        print("enable debug mode")
    }
}

class Engineer: Car {
    func startEngine() {
        print("start engine")
    }

    func stopEngine() {
        print("stop engine")
    }

    func enableDebugMode() {
        print("enable debug mode")
    }
}

interface Car {
    fun startEngine()
    fun stopEngine()
    fun enableDebugMode()
}

class Driver: Car {
    override fun startEngine() {
        println("start engine")
    }

    override fun stopEngine() {
        println("stop engine")
    }

    override fun enableDebugMode() {
        println("enable debug mode")
    }
}

class Engineer: Car {
    override fun startEngine() {
        println("start engine")
    }

    override fun stopEngine() {
        println("stop engine")
    }

    override fun enableDebugMode() {
        println("enable debug mode")
    }
}

Problem Analysis: In the above design, all classes implementing the Car interface must implement the enableDebugMode() method. But in reality:

Engineers need to enable DebugMode for vehicle diagnostics
Regular drivers should not and do not need to enable DebugMode

This violates the Interface Segregation Principle because drivers are forced to implement unrelated methods.

Solution: We should isolate enableDebugMode() into an independent interface, letting different roles only implement the functionality they truly need:

Swift
Kotlin

protocol Car1 {
    func startEngine()
    func stopEngine()
}

protocol Debuggable {
    func enableDebugMode()
}

class Driver1: Car1 {
    func startEngine() {
        print("start engine")
    }

    func stopEngine() {
        print("stop engine")
    }
}

class Engineer1: Car1, Debuggable {
    func startEngine() {
        print("start engine")
    }

    func stopEngine() {
        print("stop engine")
    }

    func enableDebugMode() {
        print("enable debug mode")
    }
}

interface Car1 {
    fun startEngine()
    fun stopEngine()
}

interface Debuggable {
    fun enableDebugMode()
}

class Driver1: Car1 {
    override fun startEngine() {
        println("start engine")
    }

    override fun stopEngine() {
        println("stop engine")
    }
}

class Engineer1: Car1, Debuggable {
    override fun startEngine() {
        println("start engine")
    }

    override fun stopEngine() {
        println("stop engine")
    }

    override fun enableDebugMode() {
        println("enable debug mode")
    }
}

Improvement Effects: Now we have two independent interfaces:

Car1: Contains basic vehicle operation functions (start/stop engine)
Debuggable: Contains debugging functionality

This design ensures:

Regular drivers only need to implement basic vehicle operation functions
Only engineers implement debugging functionality
Each role only implements the interface methods they truly need

Dependency Inversion Principle (DIP)

Core Concept:

High-level modules should not depend on low-level modules; both should depend on abstractions
Abstractions should not depend on details; details should depend on abstractions

This principle is the most important among the SOLID principles. It requires us to reverse traditional dependency relationships. By introducing abstraction layers, we can make systems more flexible, easier to test and maintain.

Practical Application Example: Let’s design a smart home system that can manage IoT devices in different rooms. For example, the living room has smart speakers and temperature controllers, the kitchen has smoke detectors, etc.:

Swift
Kotlin

class Room {
    var no: Int
    var device: [String]

    init(no: Int, device: [String]) {
        self.no = no
        self.device = device
    }
}

class SQLiteService {
    func saveRoom(room: Room) {
        print("SQLiteService save")
    }

    func deleteRoom(no: Int) {
        print("SQLiteService delete")
    }
}

class RoomViewController {
    var sqlDBService: SQLiteService? = nil

    init(sqlDBService: SQLiteService) {
        sqlDBService
    }

    func saveRoomToDB(room: Room) {
        sqlDBService?.saveRoom(room: room)
    }

    func deleteRoomFromDB(no: Int) {
        sqlDBService?.deleteRoom(no: no)
    }
}

let roomVC = RoomViewController(sqlDBService: SQLiteService())
let room = Room(no: 1, device: ["IPCam", "VDP"])
roomVC.saveRoomToDB(room: room)
roomVC.deleteRoomFromDB(no: room.no)

class Room {
    val no: Int
    val device: List<String>

    constructor(no: Int, device: List<String>) {
        this.no = no
        this.device = device
    }
}

class SQLiteService {
    fun saveRoom(room: Room) {
        println("SQLiteService save")
    }

    fun deleteRoom(no: Int) {
        println("SQLiteService delete")
    }
}

class RoomActivity {
    var sqlDBService: SQLiteService? = null

    constructor(sqlDBService: SQLiteService) {
        this.sqlDBService = sqlDBService
    }

    fun saveRoomToDB(room: Room) {
        sqlDBService?.saveRoom(room)
    }

    fun deleteRoomFromDB(no: Int) {
        sqlDBService?.deleteRoom(no)
    }
}

val roomVC = RoomActivity(SQLiteService())
val room = Room(1, listOf("IPCam", "VDP"))
roomVC.saveRoomToDB(room)
roomVC.deleteRoomFromDB(room.no)

Problem Analysis: In the above design, RoomViewController directly depends on the concrete SQLiteService class. This creates tight coupling problems:

If today we need to switch to CoreData or other database systems due to performance considerations (like SQLite being too slow), we’ll find the system cannot be easily swapped. This is because high-level modules (Controller) directly depend on low-level modules (SQLite implementation).

Solution: By depending on abstractions rather than concrete implementations, we can make code very easy to swap and test:

Swift
Kotlin

protocol DataBaseService {
    func saveRoom(room: Room)
    func deleteRoom(no: Int)
}

class SQLiteDBService: DataBaseService {
    func saveRoom(room: Room) {
        print("SQLiteDBService save")
    }

    func deleteRoom(no: Int) {
        print("SQLiteDBService delete")
    }
}

class CoreDataDBService: DataBaseService {
    func saveRoom(room: Room) {
        print("CoreDataDBService save")
    }

    func deleteRoom(no: Int) {
        print("CoreDataDBService delete")
    }
}

class MySQLDBService: DataBaseService {
    func saveRoom(room: Room) {
        print("MySQLDBService save")
    }

    func deleteRoom(no: Int) {
        print("MySQLDBService delete")
    }
}

class Room2ViewController {
    var databaseService: DataBaseService? = nil

    init(databaseService: DataBaseService) {
        self.databaseService = databaseService
    }

    func saveRoomToDB(room: Room) {
        databaseService?.saveRoom(room: room)
    }

    func deleteRoomFromDB(no: Int) {
        databaseService?.deleteRoom(no: no)
    }
}

let sqliteDB = SQLiteDBService()
let coreDataDB = CoreDataDBService()
let mysqlDB = MySQLDBService()

let room2VC = Room2ViewController(databaseService: sqliteDB)
let room2 = Room(no: 2, device: ["IPCam", "VDP"])

// sql
room2VC.saveRoomToDB(room: room2)
room2VC.deleteRoomFromDB(no: room2.no)

// coredata
room2VC.databaseService = coreDataDB
room2VC.saveRoomToDB(room: room2)
room2VC.deleteRoomFromDB(no: room2.no)

// mysql
room2VC.databaseService = mysqlDB
room2VC.saveRoomToDB(room: room2)
room2VC.deleteRoomFromDB(no: room2.no)

interface DataBaseService {
    fun saveRoom(room: Room)
    fun deleteRoom(no: Int)
}

class SQLiteDBService: DataBaseService {
    override fun saveRoom(room: Room) {
        println("SQLiteDBService save")
    }

    override fun deleteRoom(no: Int) {
        println("SQLiteDBService delete")
    }
}

class CoreDataDBService: DataBaseService {
    override fun saveRoom(room: Room) {
        println("CoreDataDBService save")
    }

    override fun deleteRoom(no: Int) {
        println("CoreDataDBService delete")
    }
}

class MySQLDBService: DataBaseService {
    override fun saveRoom(room: Room) {
        println("MySQLDBService save")
    }

    override fun deleteRoom(no: Int) {
        println("MySQLDBService delete")
    }
}

class Room2Activity {
    var databaseService: DataBaseService? = null

    constructor(databaseService: DataBaseService) {
        this.databaseService = databaseService
    }

    fun saveRoomToDB(room: Room) {
        databaseService?.saveRoom(room)
    }

    fun deleteRoomFromDB(no: Int) {
        databaseService?.deleteRoom(no)
    }
}

val sqliteDB = SQLiteDBService()
val coreDataDB = CoreDataDBService()
val mysqlDB = MySQLDBService()

val room2VC = Room2Activity(sqliteDB)
val room2 = Room(2, listOf("IPCam", "VDP"))

// sql
room2VC.saveRoomToDB(room2)
room2VC.deleteRoomFromDB(room2.no)

// coredata
room2VC.databaseService = coreDataDB
room2VC.saveRoomToDB(room2)
room2VC.deleteRoomFromDB(room2.no)

// mysql
room2VC.databaseService = mysqlDB
room2VC.saveRoomToDB(room2)
room2VC.deleteRoomFromDB(room2.no)

Improvement Effects: Now Room2ViewController depends on the abstract DataBaseService interface rather than concrete implementations. This brings tremendous flexibility:

Can freely switch different database implementations at runtime
Adding new database types only requires implementing the interface, no need to modify existing code
Each database implementation is independent and doesn’t affect others

DIP Implementation Methods:

Interface
Protocol
Abstract Class

Benefits of Depending on Abstractions:

Enhanced flexibility: Makes code more flexible and easy to swap dependency objects
Improved maintainability: Adding an abstraction layer makes code easier to maintain and test
Simplified testing: Abstraction layers allow us to easily create mock objects for quickly testing program logic

Encapsulate What Varies

Core Concept: Identify parts of your program that might need to change, separate them from those that stay the same, and encapsulate them independently.

This principle requires us to identify variation points in the system and encapsulate these variations. The benefit is that when requirements change, we only need to modify the varying parts while stable code remains unchanged.

Practical Application Example: Suppose we want to design an ordering system for a pancake shop:

Swift
Kotlin

func orderPancake(type: String) {
    var pancake: Pancake?

    // Code that is varying
    switch type {
    case "classic":
        pancake = ClassicPancake()
    case "blueberry":
        pancake = BlueberryPancake()
    case "banana":
        pancake = BananaPancake()
//    case "chocolate chip":
//        pancake = ChocolateChipPancake()
    default:
        pancake = ClassicPancake()
    }

    // Important code that does not vary
    pancake?.cook()
    pancake?.plate()
    pancake?.addButter()
}

fun orderPancake(type: String) {

    // Code that is varying
    val pancake: Pancake = when (type) {
        "classic" -> ClassicPancake()
        "blueberry" -> BlueberryPancake()
        "banana" -> BananaPancake()
//        "chocolate chip" -> ChocolateChipPancake()
        else -> ClassicPancake()
    }

    // Important code that does not vary
    pancake.cook()
    pancake.plate()
    pancake.addButter()
}

Problem Analysis: In the above code, we can identify two different parts:

Code that varies: Logic for creating different pancake objects based on flavor type
Code that doesn’t vary: The preparation process of cook(), plate(), addButter()

When the boss wants to add ChocolateChip flavor, we must modify the switch statement, but the preparation process doesn’t need to change at all.

Solution: We should extract the varying code and encapsulate it, reducing impact on stable code:

Swift
Kotlin

public class SimplePancakeFactory {
    public class func createPancake(type: String) -> Pancake? {
        var pancake: Pancake?

        // Code that is varying
        switch type {
        case "classic":
            pancake = ClassicPancake()
        case "blueberry":
            pancake = BlueberryPancake()
        case "banana":
            pancake = BananaPancake()
        //    case "chocolate chip":
        //        pancake = ChocolateChipPancake()
        default:
            pancake = ClassicPancake()
        }

        return pancake
    }
}

func orderPancakeWithFactory(type: String) {
    let pancake = SimplePancakeFactory.createPancake(type: type)

    // Important code that does not vary
    pancake?.cook()
    pancake?.plate()
    pancake?.addButter()
}

object SimplePancakeFactory {
    fun createPancake(type: String): Pancake {
        return when (type) {
            "classic" -> ClassicPancake()
            "blueberry" -> BlueberryPancake()
            "banana" -> BananaPancake()
//        "chocolate chip" -> ChocolateChipPancake()
            else -> ClassicPancake()
        }
    }
}

fun orderPancakeWithFactory(type: String) {
    val pancake = SimplePancakeFactory.createPancake(type)

    // Important code that does not vary
    pancake.cook()
    pancake.plate()
    pancake.addButter()
}

Improvement Effects: By encapsulating variation, we successfully separated responsibilities:

SimplePancakeFactory: Specifically handles the varying pancake creation logic
orderPancakeWithFactory(): Focuses on the stable preparation process

Now when we need to add new flavors:

Only need to modify the creation logic in SimplePancakeFactory
No need to touch the preparation process code at all
Reduces modification risk and improves code stability

Favor composition over inheritance

Core Concept: HAS-A (composition relationship) is often better than IS-A (inheritance relationship).

This principle suggests we should use composition to replace inheritance whenever possible. This doesn’t mean completely avoiding inheritance, but rather prioritizing composition in most situations. Composition provides greater flexibility, avoiding the complexity and limitations that inheritance might bring.

Why is composition better?

Can dynamically change behavior at runtime
Avoids the problem of overly deep inheritance hierarchies
Reduces explosive growth in the number of classes
Provides better code reusability

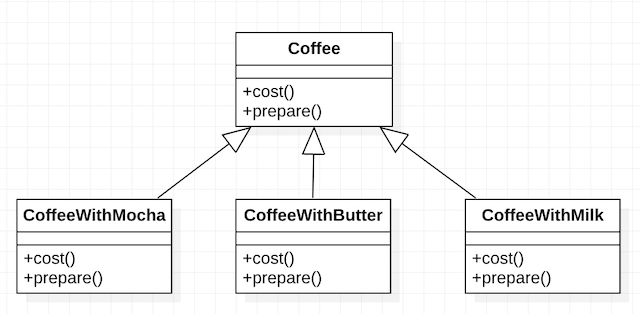

Practical Application Example: Suppose we want to design an ordering system for a coffee shop, initially we might use inheritance:

design_pattern_design_principle_favor_composition_over_inheritance_1

Problems with inheritance approach: When customers want both Butter and Milk flavors, we need to define a new class CoffeeWithButterAndMilk.

This design encounters serious problems:

As condiment types increase, coffee combinations grow exponentially
Explosive increase in number of classes (need CoffeeWithMilk, CoffeeWithButter, CoffeeWithMilkAndButter, etc.)
When milk price increases, all Coffee classes containing milk must be modified
Cannot dynamically adjust condiment combinations at runtime

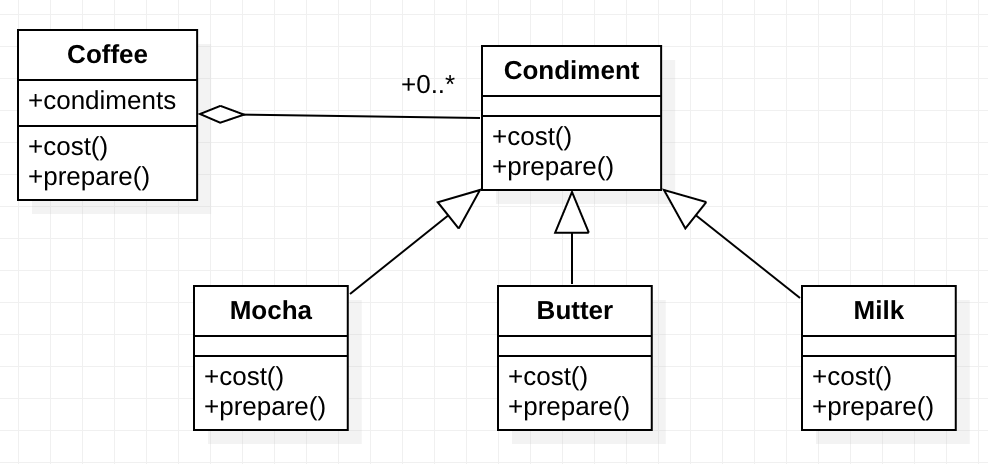

Composition approach solution: Change design thinking from “milk coffee is-a coffee” to “coffee has-a various condiments”:

design_pattern_design_principle_favor_composition_over_inheritance_2

Advantages of composition approach:

Runtime flexibility: Can dynamically replace different condiment objects during program execution
Easy to extend: Adding a new condiment only requires adding one corresponding class
Avoid duplicate code: Condiment logic is independent, no duplicate implementation
Control complexity: Avoid explosive increase in number of classes
Independent maintenance: Price and logic of each condiment can be modified independently

Important Reminder: We’re not completely abandoning inheritance, but “prioritizing” composition. Appropriate inheritance still has its value, as in the above example where Mocha, Butter, and Milk also inherit from Condiment to implement common interfaces.

The key is finding the optimal balance between composition and inheritance.

Loose Coupling

Core Concept: Keep each component independent, minimizing mutual influence between parts.

Loose coupling is an important goal in software design, allowing different parts of the system to change independently without affecting other parts. Tightly coupled systems are difficult to maintain, test, and extend, while loosely coupled systems have better flexibility and maintainability.

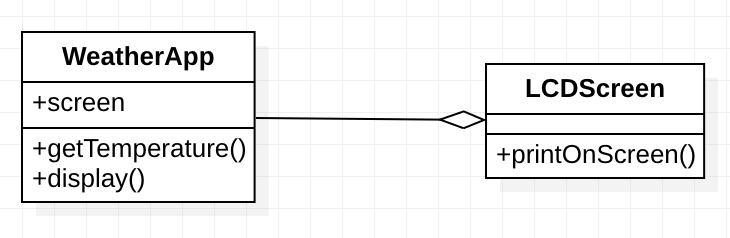

Practical Application Example: Let’s design a weather application that can get temperature data and display it on screen:

design_pattern_design_principle_loose_coupling_1

Problems with tight coupling: In the above design, WeatherApp is tightly coupled with LCDScreen, causing the following problems:

When requirements change (like switching to Widget or LED display), must modify WeatherApp code
Cannot dynamically replace display devices at runtime
Difficult to perform unit testing (cannot easily create fake display objects)
System lacks flexibility and poor extensibility

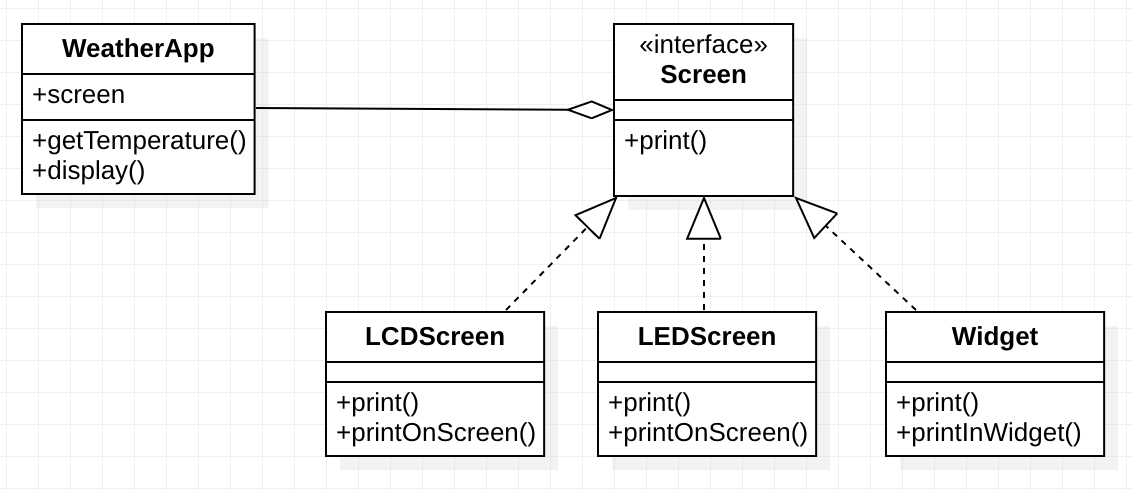

Decoupling solution: We can eliminate tight coupling by introducing an abstraction layer:

design_pattern_design_principle_loose_coupling_2

Effects of decoupling: By introducing the DisplayDevice interface, we successfully achieved loose coupling:

WeatherApp now depends on abstract interfaces rather than concrete implementations
Can easily replace any display device implementing the DisplayDevice interface
Supports dynamic replacement of display devices at runtime
Facilitates unit testing (can create Mock objects)
Adding new display device types requires no modification of existing code

Core strategy for loose coupling: Use abstract interfaces wisely to decouple two concrete objects, providing systems with better flexibility and maintainability.

Program to Interfaces

Core Concept: When writing programs, code against interfaces (abstractions) rather than concrete implementations.

This principle is an important mindset in modern software development. When you get used to programming to interfaces, you’ll find code becomes very flexible and easy to maintain.

Advantages of programming to interfaces:

High interchangeability: Any object can be easily replaced
Easy to test: Can easily create mock objects for testing
Architecture flexibility: In MVC, MVP and other architectures, can easily replace components
Easy extension: Adding new functionality becomes simpler

Industry recognition: Even Apple specifically mentioned Swift’s Protocol-Oriented Programming at WWDC15, emphasizing the importance of protocol (interface) centered programming thinking.

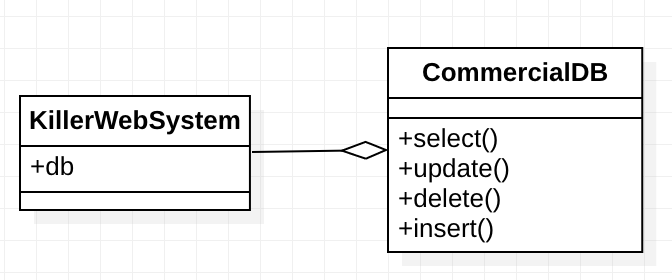

Practical Application Example: Let’s design a basic website system including WebSystem and database for data access:

design_pattern_design_principle_program_to_interface_1

Problem scenario: Suppose we want to temporarily replace CommercialDB with TestDB for testing before going live. But in the current design, KillerWebSystem directly depends on the concrete CommercialDB class, making it difficult to swap easily.

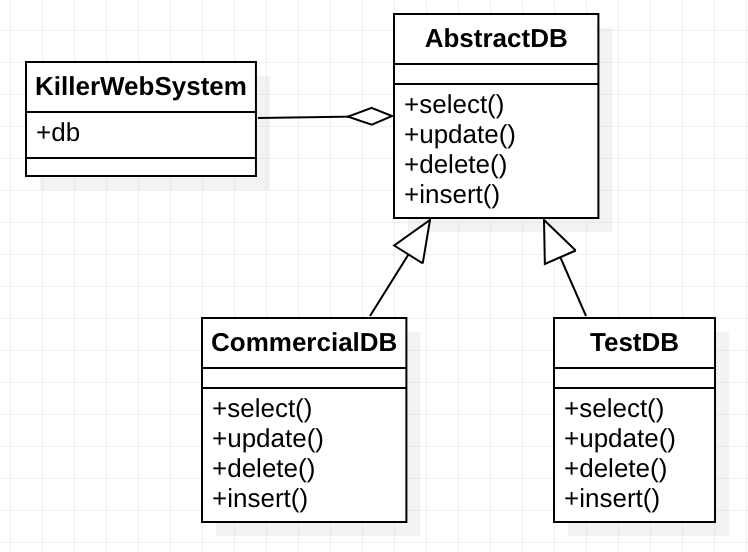

Solution: Solve this problem by introducing abstract interfaces:

design_pattern_design_principle_program_to_interface_2

Improvement effects: By creating the AbstractDB interface, both CommercialDB and TestDB implement the same interface. Now KillerWebSystem depends on abstract interfaces rather than concrete implementations.

This design brings huge benefits:

Can easily switch between test and production databases
Adding new database types (like MockDB) becomes simple
Code is more flexible and maintainable
Truly implements interface-based programming thinking

Summary

In this article, we deeply explored the core concepts and practical applications of software design principles. Through rich examples and specific code demonstrations, we learned how to apply these principles to improve code quality.

Review of design principles we learned:

SOLID Principles:

Single Responsibility Principle (SRP): Let each class focus on a single function, improving code cohesion
Open-Closed Principle (OCP): Open for extension, closed for modification, achieving flexible extension through abstraction
Liskov Substitution Principle (LSP): Ensure child classes can completely replace parent classes, guaranteeing polymorphism correctness
Interface Segregation Principle (ISP): Use multiple specialized interfaces rather than single general-purpose interfaces, avoiding unnecessary dependencies
Dependency Inversion Principle (DIP): Depend on abstractions rather than concrete implementations, improving system flexibility

Other important principles:

Encapsulate What Varies: Identify and encapsulate variation points in the system, protecting stable code
Favor composition over inheritance: Prioritize composition relationships, avoiding complexity brought by inheritance
Loose Coupling: Reduce mutual dependencies between components, improving system maintainability
Program to Interfaces: Code against abstractions rather than concrete implementations

Moving toward design patterns: Design principles are the cornerstone for building robust, extensible, and flexible systems. They provide us with frameworks for thinking about problems, while design patterns are concrete applications of these principles in specific scenarios.

Having mastered these principles, we now have the foundation for understanding and applying design patterns. In the upcoming series articles, we will explore how various design patterns use these principles to solve more complex design challenges, further enhancing your software design capabilities.

design_pattern_design_principle_architecture

Object-Oriented Concepts -> Design Principle -> Design Pattern

References

Note: If you have any suggestions, questions or different ideas, feel free to leave a comment or send me an email, we can discuss and grow together 🙂
